SPECIFICATIONS

Brand Name: TONGOU

Certification: CE

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: None

Origin: Mainland China

Type: Mini

Warranty: one year

is_customized: Yes

Notice :

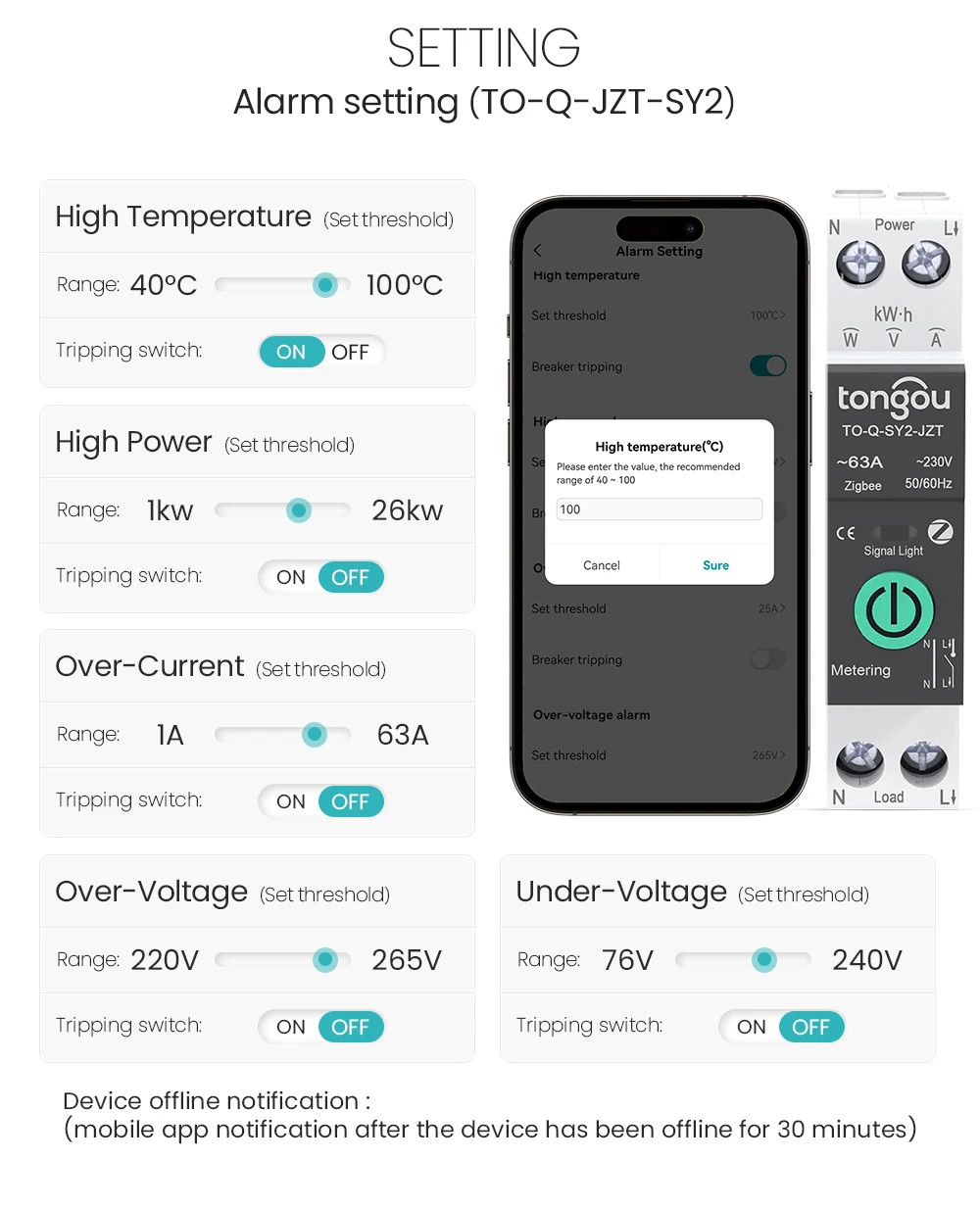

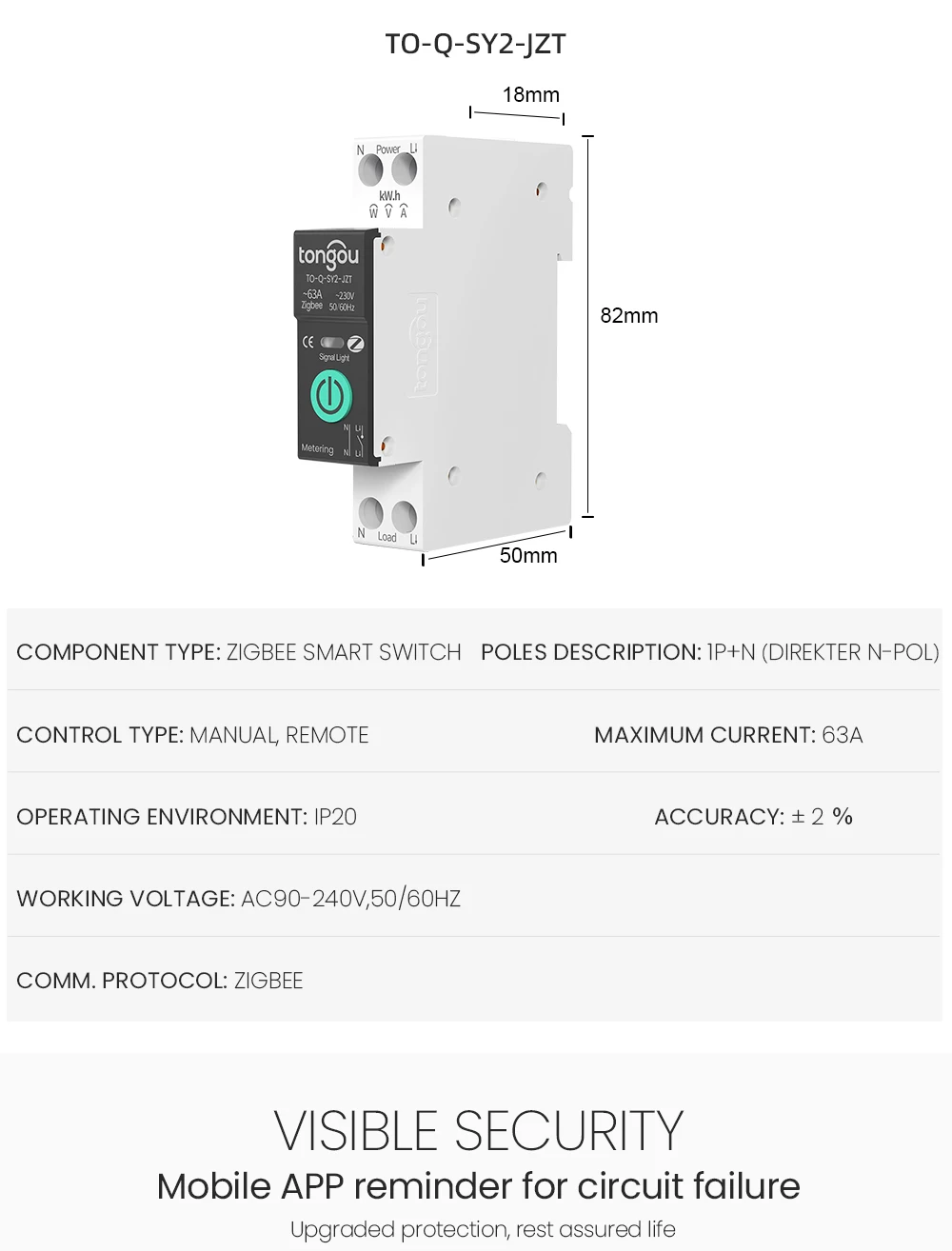

The temperature displayed by SY2  SYS is the internal CPU temperature, not the external ambient temperature.

A note on Zigbee gateway adaptability

1、Wired zigbee gateway: please ensure that the firmware version ≥ 1.19.2(WIFI)/1.0.13(Zigbee)

2、WIFI + Zigbee wireless gateway: please ensure that the firmware version ≥ 1.12.0 (WIFI) / 1.0.8

(Zigbee)

3、Mini multimode gateway (the most common version for home use): please ensure that the firmware version ≥ 1.4.8 (WIFI) / 2.4.1 (Zigbee)

4、WIFI + Zigbee intelligent dual-link gateway: please ensure that the firmware version ≥ 1.8.2 (WIFI) / 1.0.13 (Zigbee)

5、Household multi-mode-function gateway (usually with audible and visual alarm function) and Smart Wired Gateway Pro (usually called Matter Gateway), they do not support temperature and current regulation modules

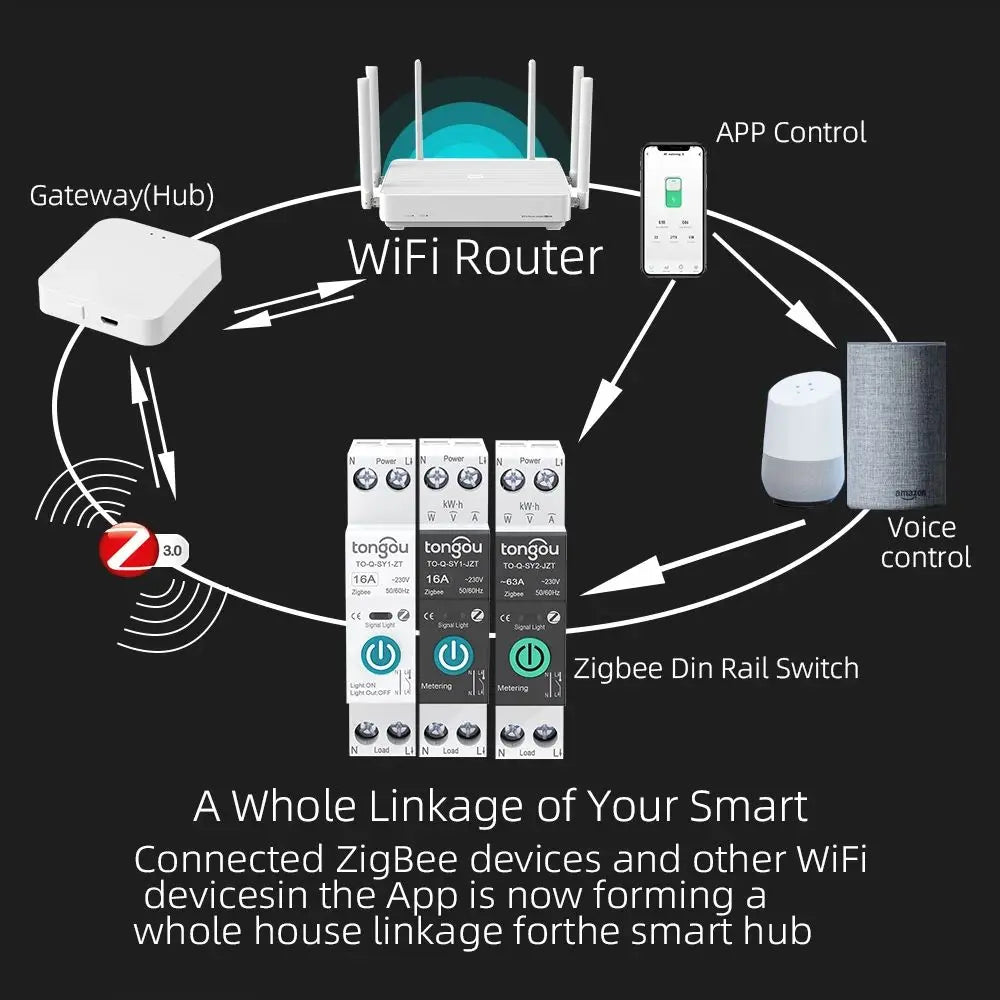

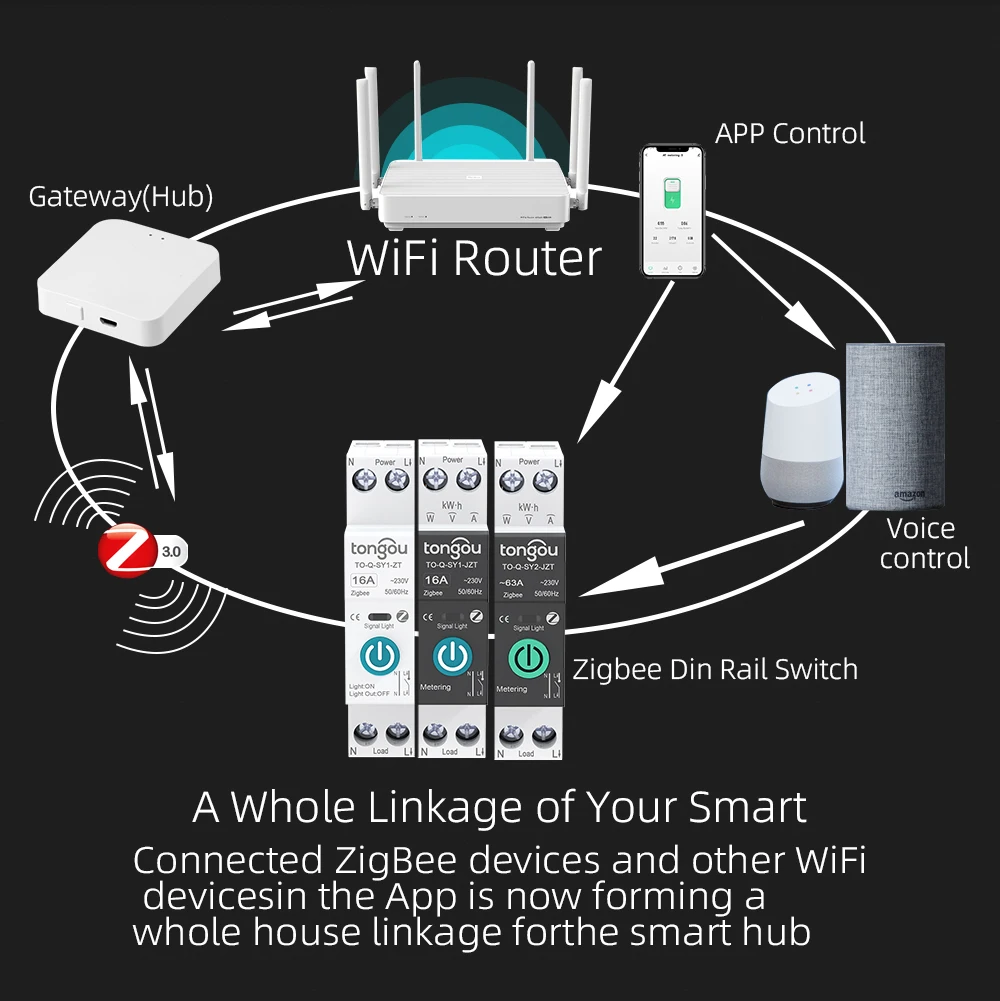

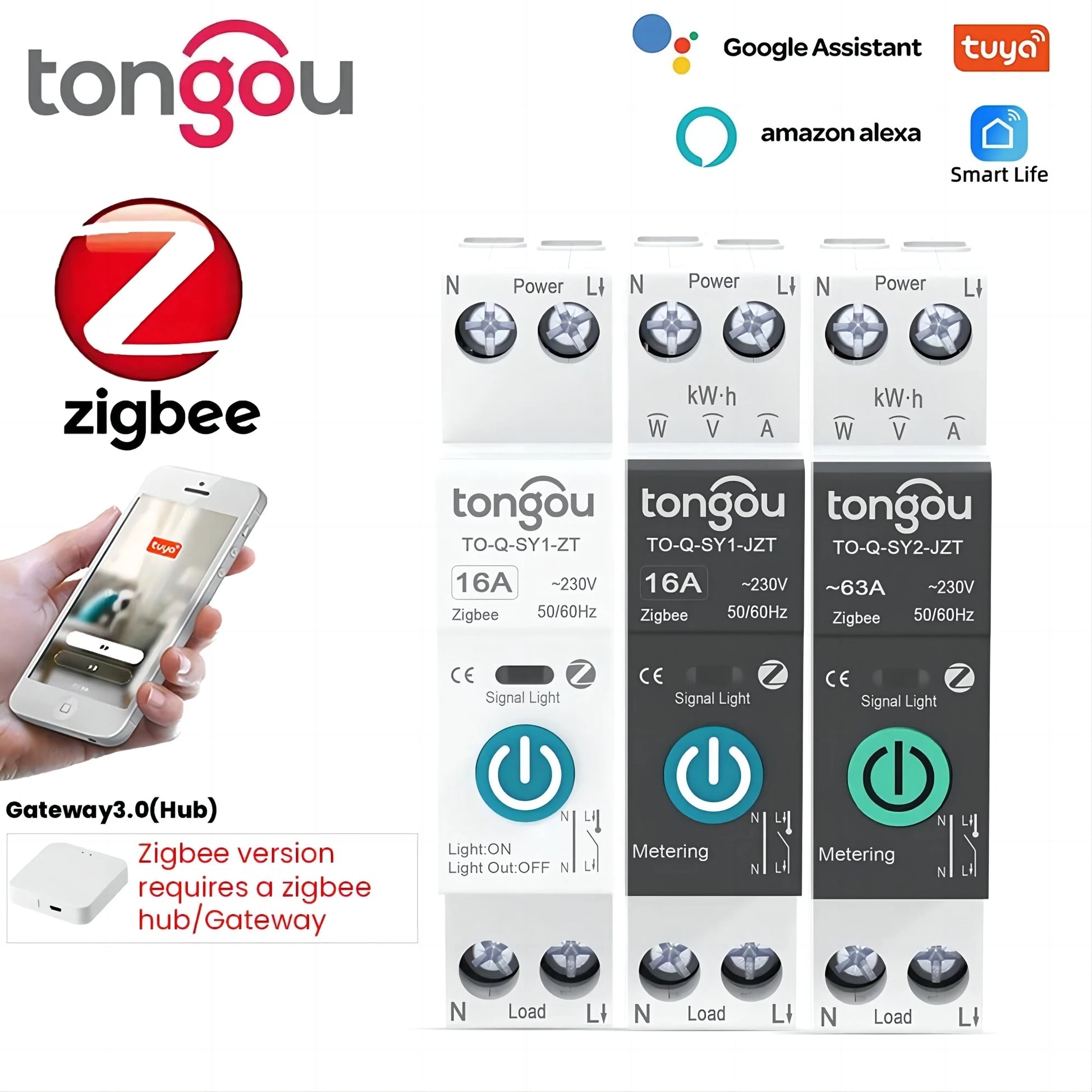

Zigbee version requires a zigbee hub/Gateway for remote control

This product adopts the emerging zigbee technology and professional manufacturing process

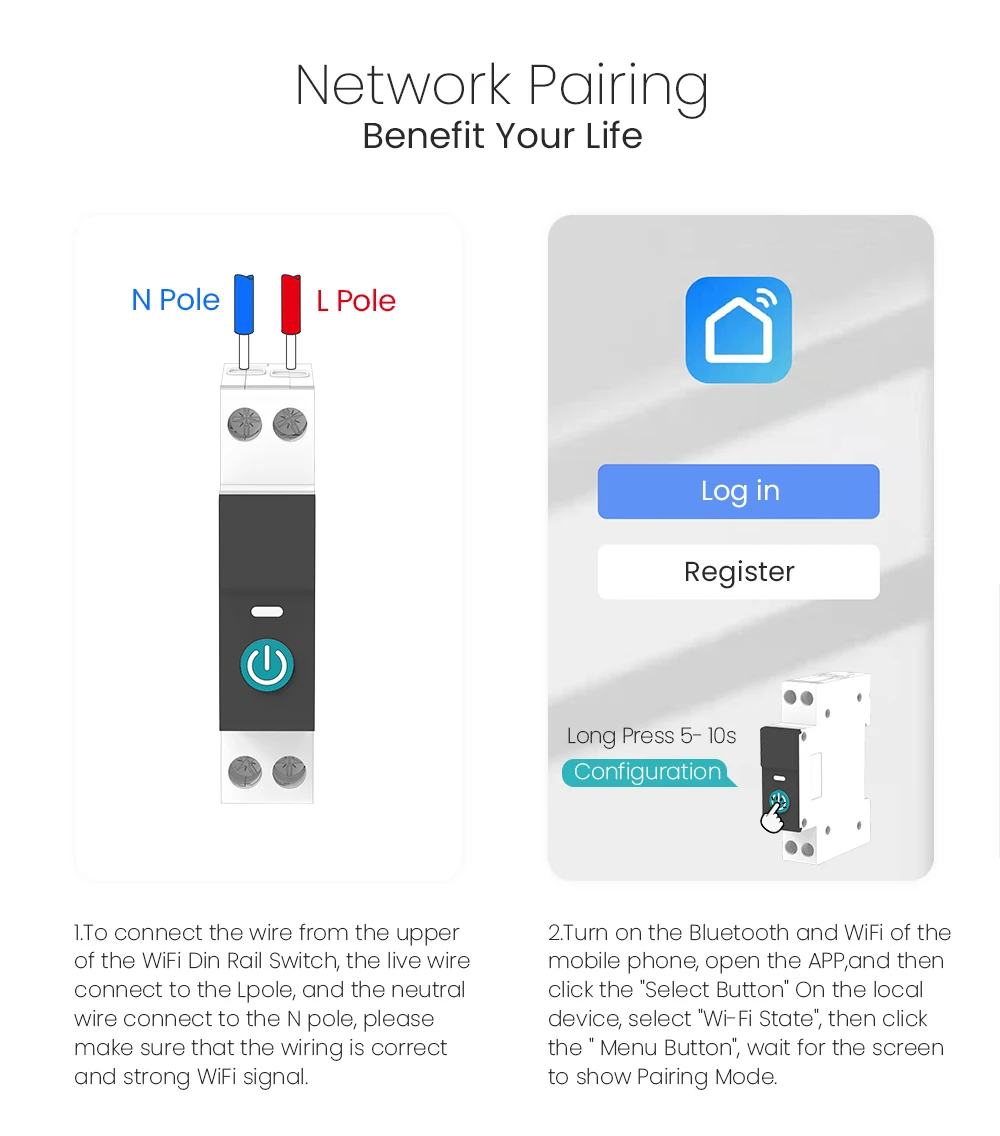

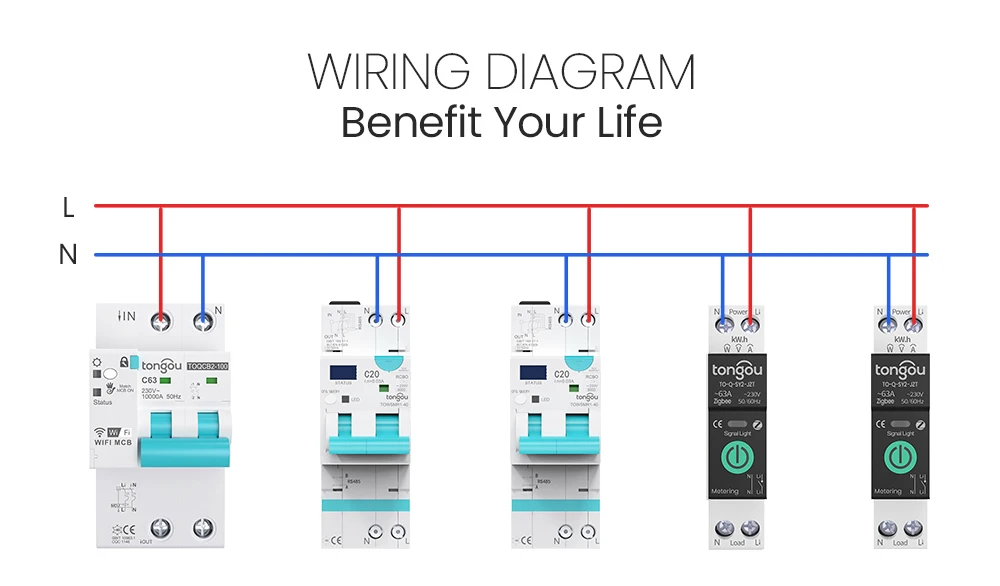

Wiring : Power must enter from the top and must be a live line + neutral (L+N)

This decive is not compatible with Home Assistant, please use the device in SMART LIFE APP/ TUYA APP.

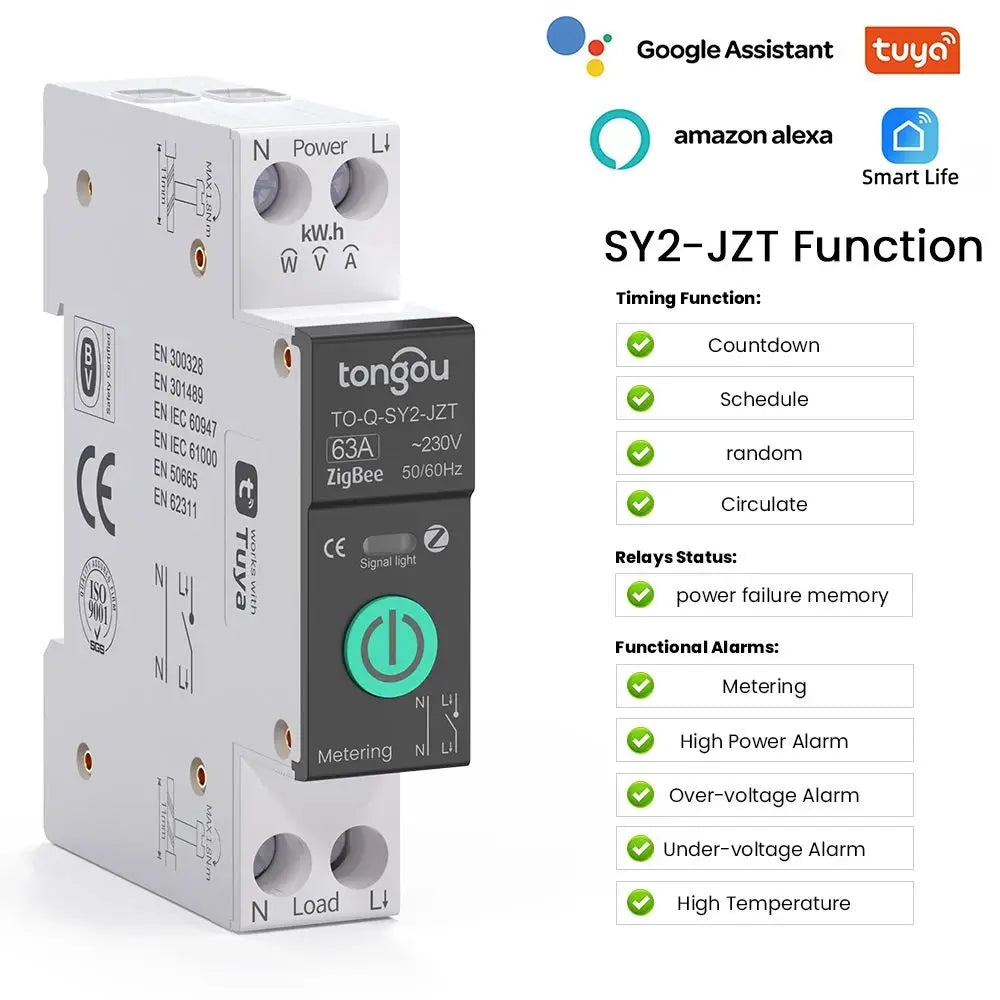

Feature:

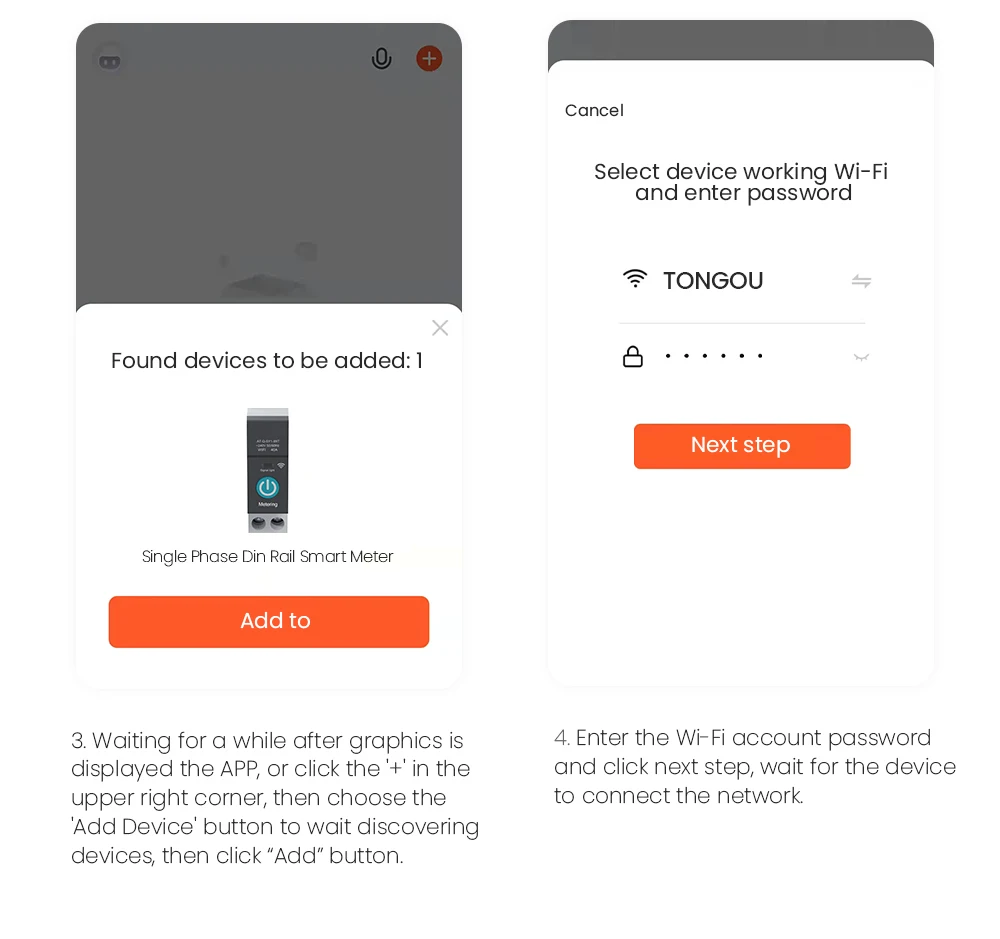

Remote control at anytime from anywhere by TUYA / Smart Life app on mobile ,no distance limit.

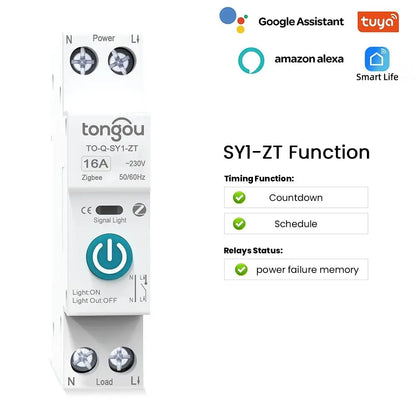

Schedule /Timing, countdown, cycle timing，Astronomical timing.

Voice control by Amazon Alexa echo dot / Google assistant

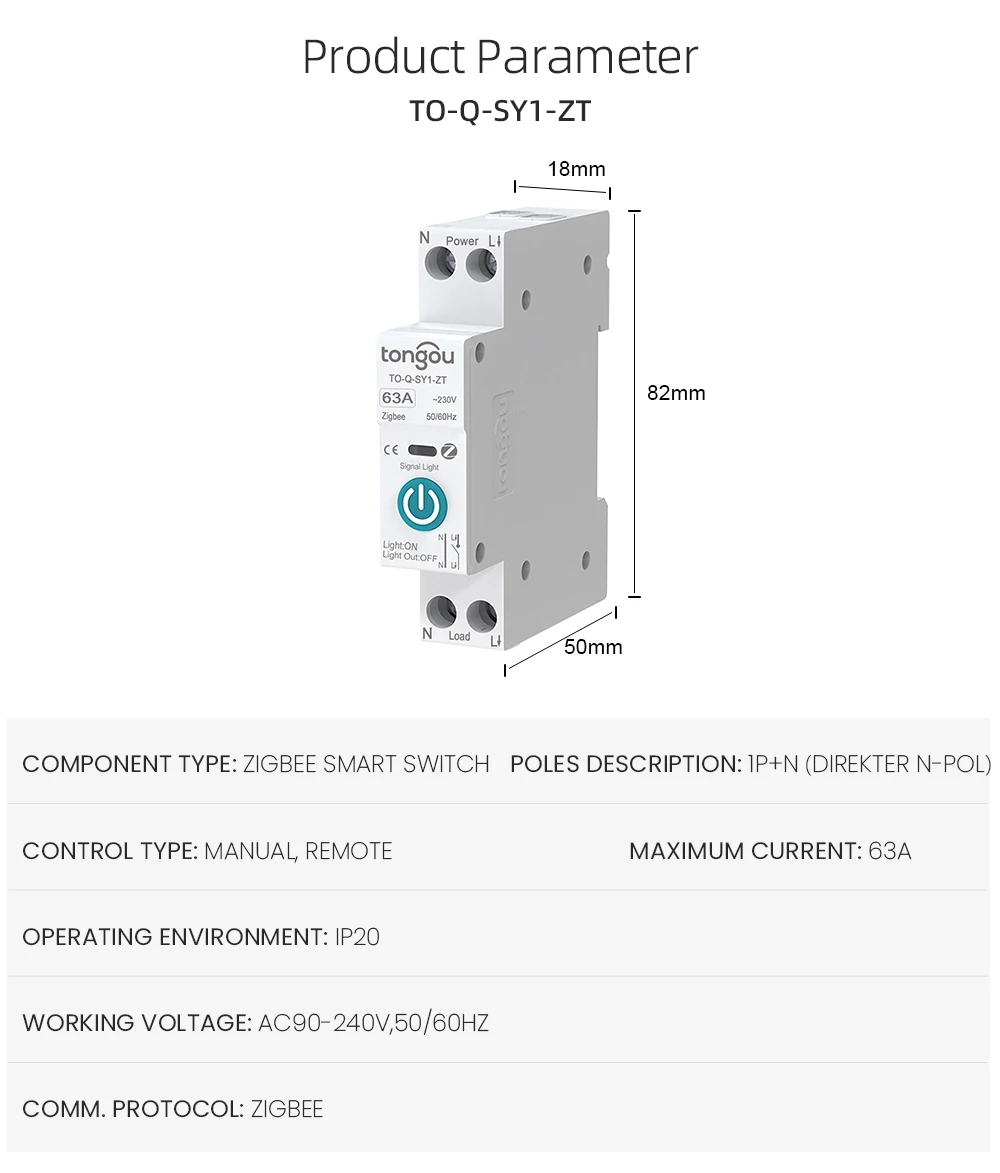

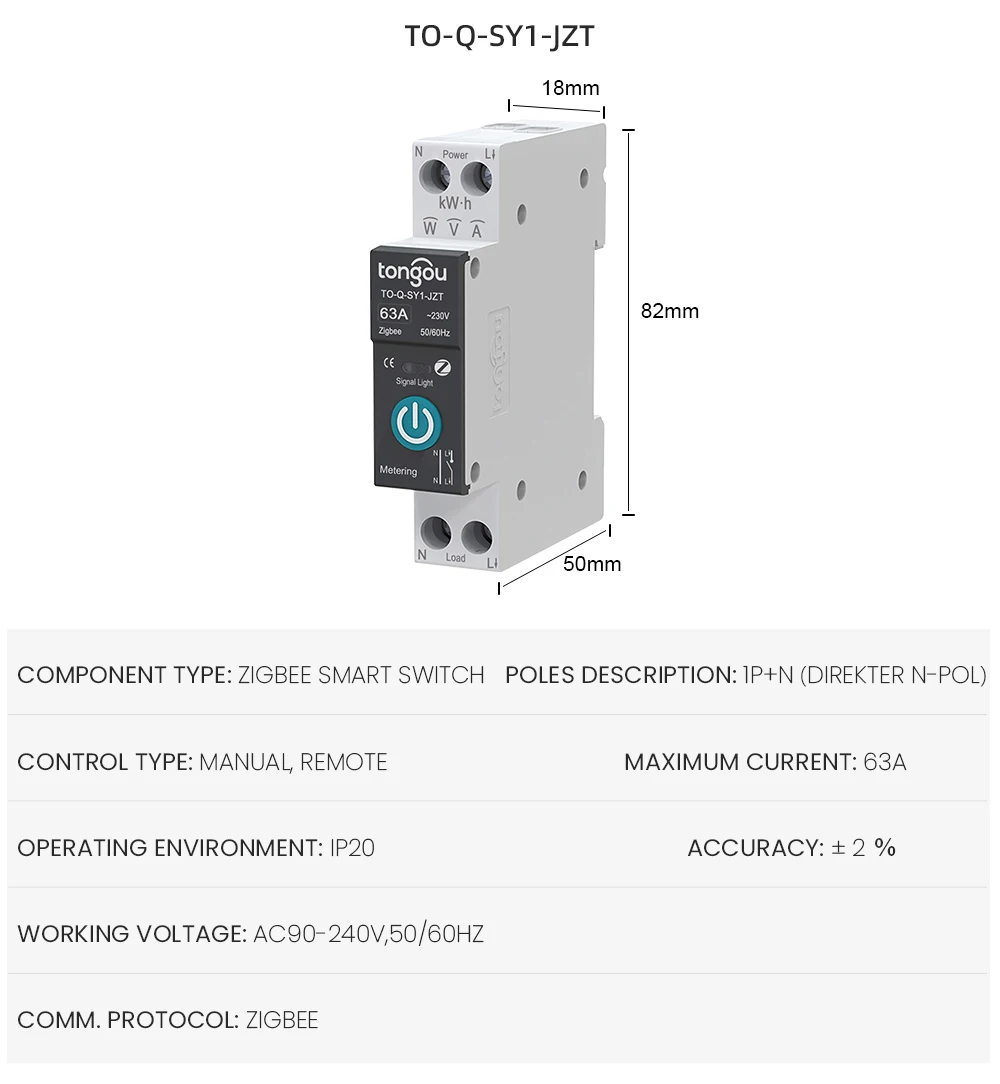

Parameter:

Working voltage:AC90-240V,50/60Hz

Current type:63A

Wireless type:Zigbee

Support system:Android\iOS
